MAGELLAN VIII su PASSIVE BASS MODULE

The MAGELLAN VIII su is truly a work horse in deep bass performance. When the need is to extend the bass of a speaker system that has good low bass it will be easier to blend with this model. A true subwoofer must always exist as the foundation for the system. The truly remarkable property of ETL™ designs is the absolutely constant loading of the driver cone at all frequencies to allow our MAGELLAN VIII su to perform to 10Hz at full power input. Performance into the infrasonic range is exemplary when you consider that it is realized with a low mass driver capable of disappearing in an audiophile system. While only 3" wider than its smaller siblings it is a remarkably smooth performer with higher power handling and deeper response all while out performing any other subwoofer design. We recommend this unit for extending the bass of mains that are going to at least 100 Hz for bottom two octaves and infrasonic extension.

MAGELLAN VIII su Product Brochure
MAGELLAN VIII su Curves Charts


(Front)

(Back)

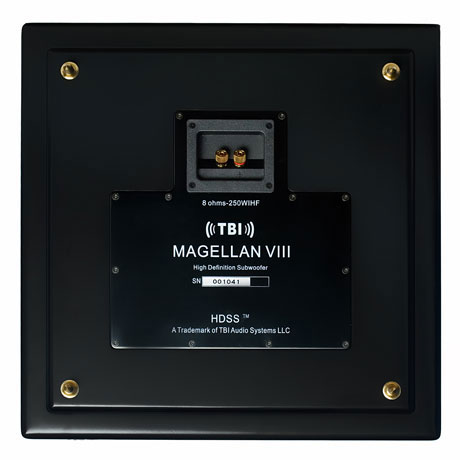

(Bottom)

Magellan VIII su passive subwoofer

Sub / Amp options
Foreign Shipping Instructions

Check for Demo Units

Specifications:

FREQUENCY RESPONSE 12 Hz – 160 Hz (–6db)
POWER CAPACITY 175 W RMS (300 W IHF)
SENSITIVITY 87 db 1w/1m @ 25Hz
DRIVER COMPLEMENT 8" Low Mass Single Piece Convex Aluminum Cone
CONNECTION 5-way binding post
IMPEDANCE 8 ohms nominal
ACCESSORIES Custom Brass Isolators - Standard Large Rubber Feet
DIMENSIONS WIDTH: 17.5 inches (444.5 mm)
DEPTH: 17.5 inches (444.5 mm)
HEIGHT: 6.8 inches ( 172.72 mm) no feet - [8.5" ( 215.9 mm) w/spikes ]
WEIGHT: 26 lbs (12kg)
Retail - $1250.00

Compatibility Chart - 1 to 10

Monitors Electrostatic & Dynamic Panels High sensitivity systems
stand mounts minis - 6 high x-over panels no bass out - 5 horn high x-over - 6
small towers - 7 low x-over panels < 100Hz - 9 horns low x-over -10
large towers - 10 dynamic planar < 100 Hz - 8 direct radiator low x-over -9
